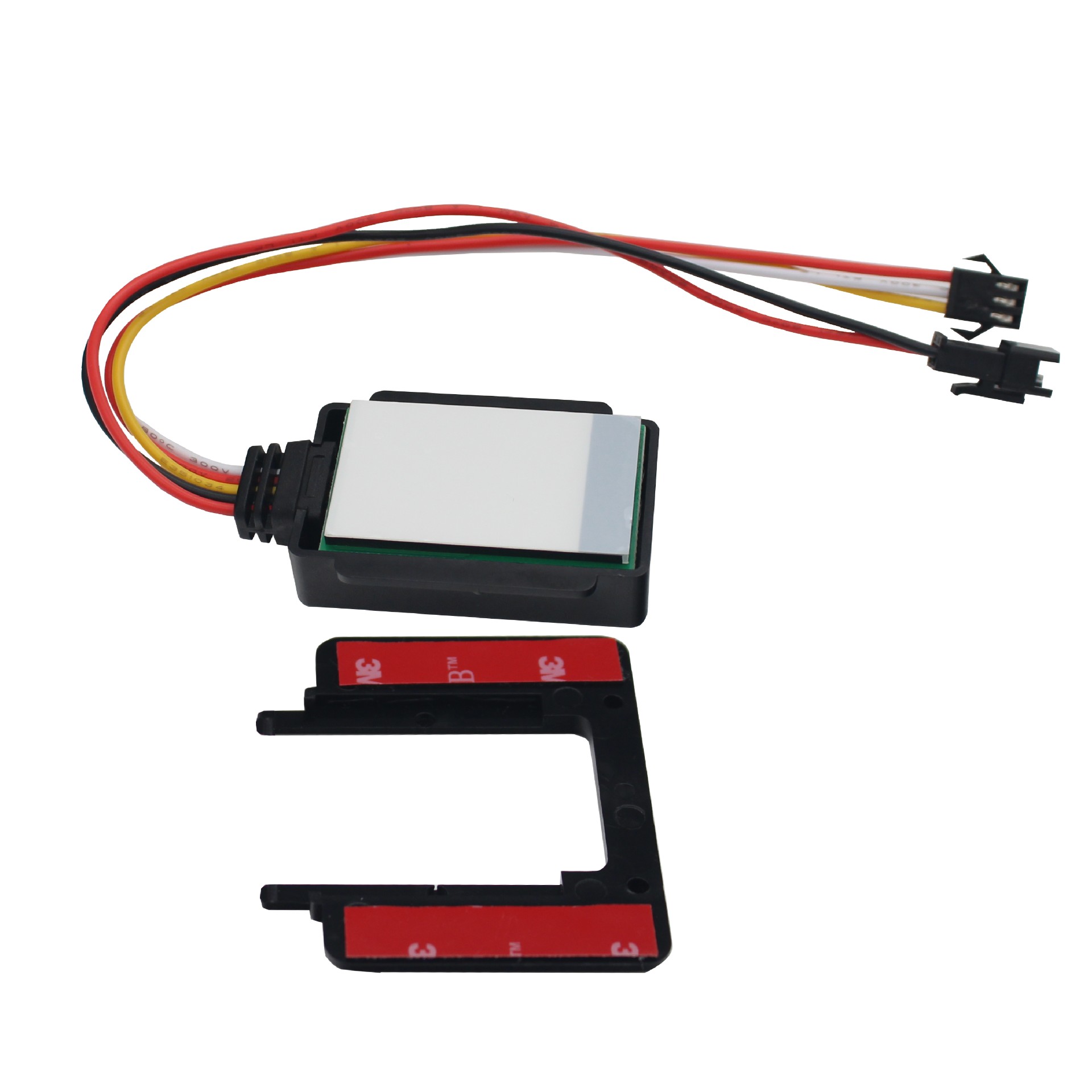

GTS-1W1203 dimmer CCT Single touch sensor for LED mirror

Input:DC 12V Output:DC 12V
Indicator Light: white(ON),Blue(OFF)
Support Mirror Thickness: Max 6MM
Sensing Type:Capacitive Sensing
Touch Point Diameter:18-20MM

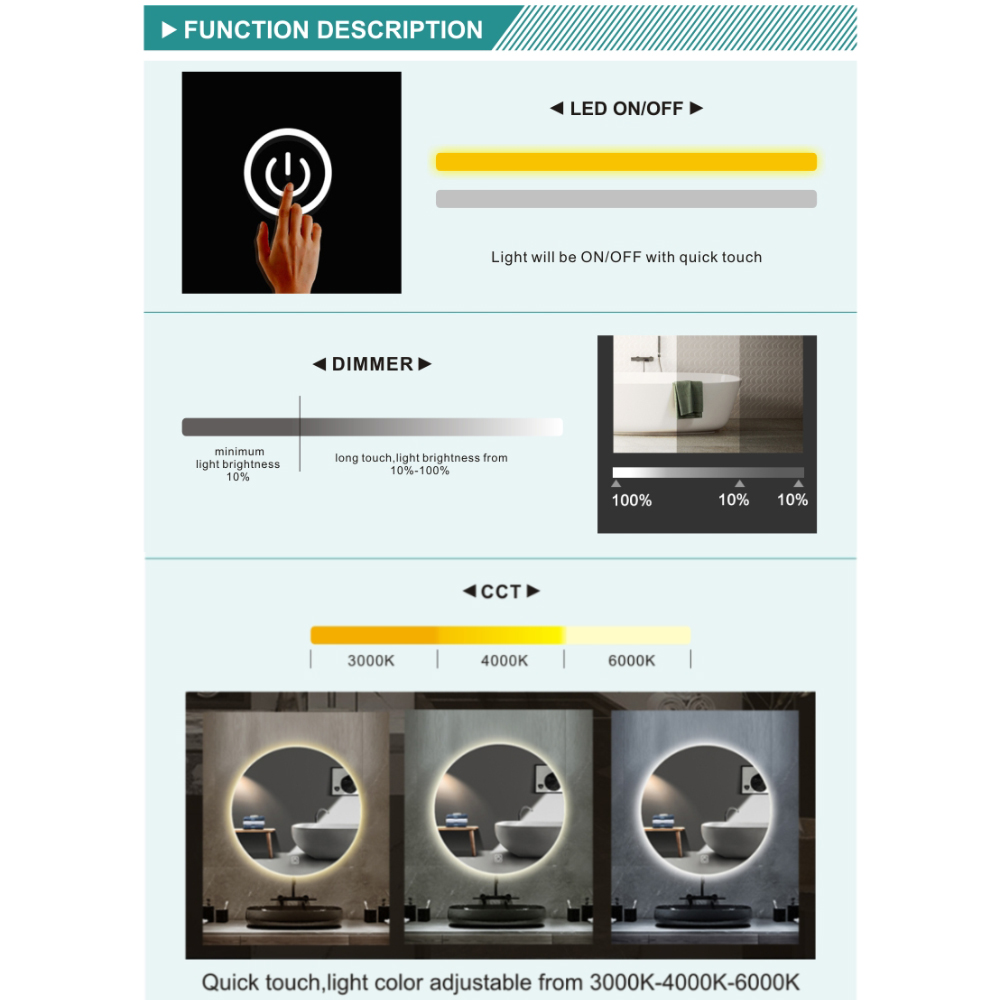

GTS-1W1203 Function:
Short touch led light ON/OFF
Long press to Dimmer(Brightness:10%-100%)
CCT by quick click

Product Detail

Touch Control Sensor Switch for Mirror Light can be powered using a simple 12V DC supply. It realizes the switch control function to light up LED lights from a single touch. The product is specially designed for smart light mirrors. It is suitable for the control of various mirror lights. On powering the 12V DC supply, the backlight of the touch control sensor switch gets started.

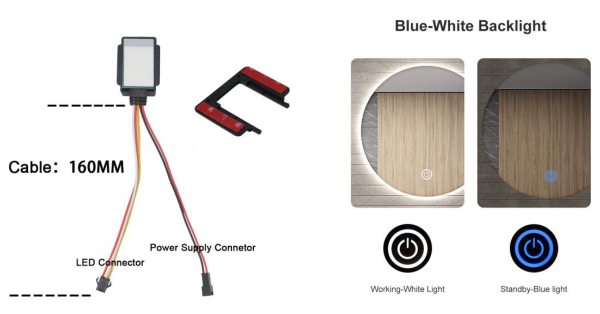

The product is reliable, easy to install, sensitive to touch. The touch Control sensor switchboard is designed with a backlight source; the backlight source and the touch switch are designed as one body. When the power supply and the control switch are connected and power on, the backlight source on the switchboard is lit up. The backlight source is always on.

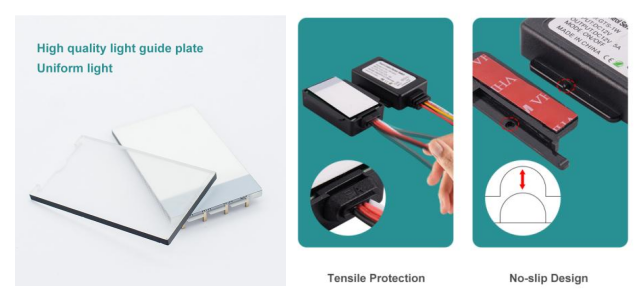

Features

1.High touch sensitivity ,high capacity of anti-interference.

2.Suitable for 3-6mm glass medium.

3.Fitted with fixed bracket,easy to assemble.

4.Uniform background lighting, no dark areas.

5.Uniform background lighting, and no dark areas.

Application

The touch switch is the carrier to realize the function of the led mirror, and it is an indispensable accessory for the led mirror.With the continuous development of science and technology, the LED mirror not only has the basic functions of the traditional mirror, but also has excellent performance in terms of intelligence, practicality and aesthetics, and the intelligent lighting function of the LED mirror is one of its major features. It can adjust the brightness and color temperature of the LED lamp strip to provide the most suitable lighting effect for the user.

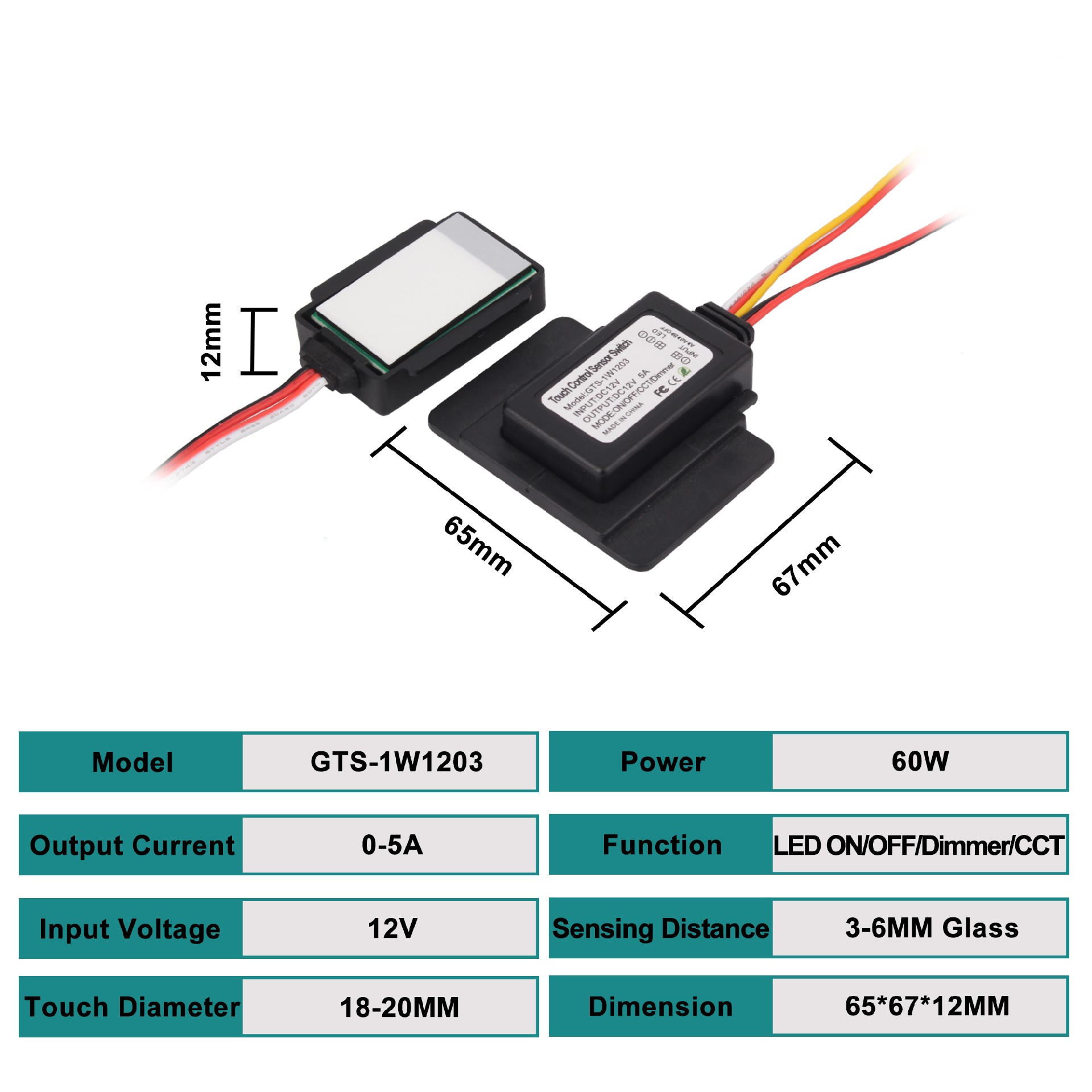

Parameters

Model	GTS-1W1203	Power	60W
Output Current	0-5A	Function	LED ON/OFF/Dimmer/CCT
Input Voltage	12V	Dimension	656712MM

Details

FAQ

1.What are your prices?

Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.

2.Do you have a minimum order quantity?

Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website.

3.Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

4.What is the average lead time?

For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

5.What kinds of payment methods do you accept?

You can make the payment to our bank account, Western Union : 30% deposit in advance, 70% balance against the copy of B/L.
