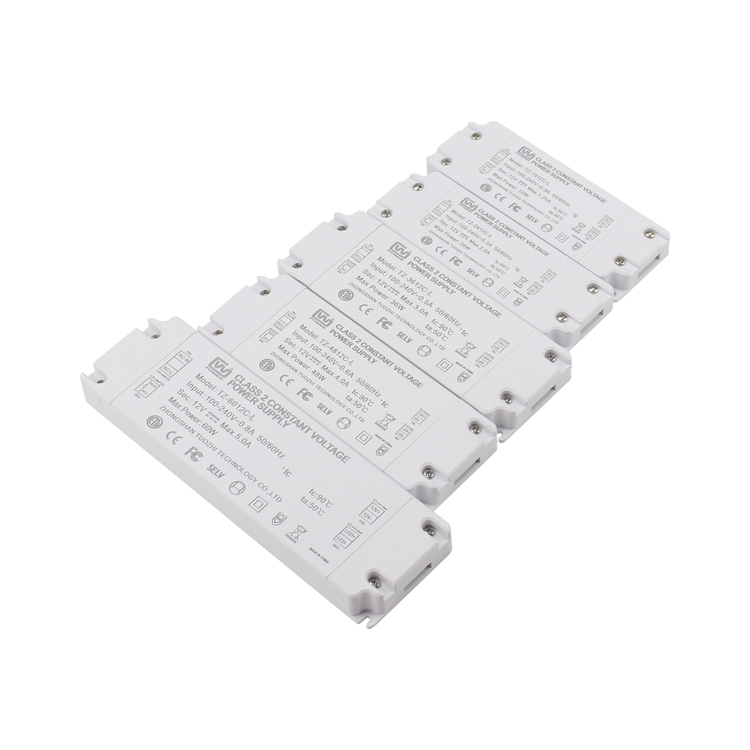

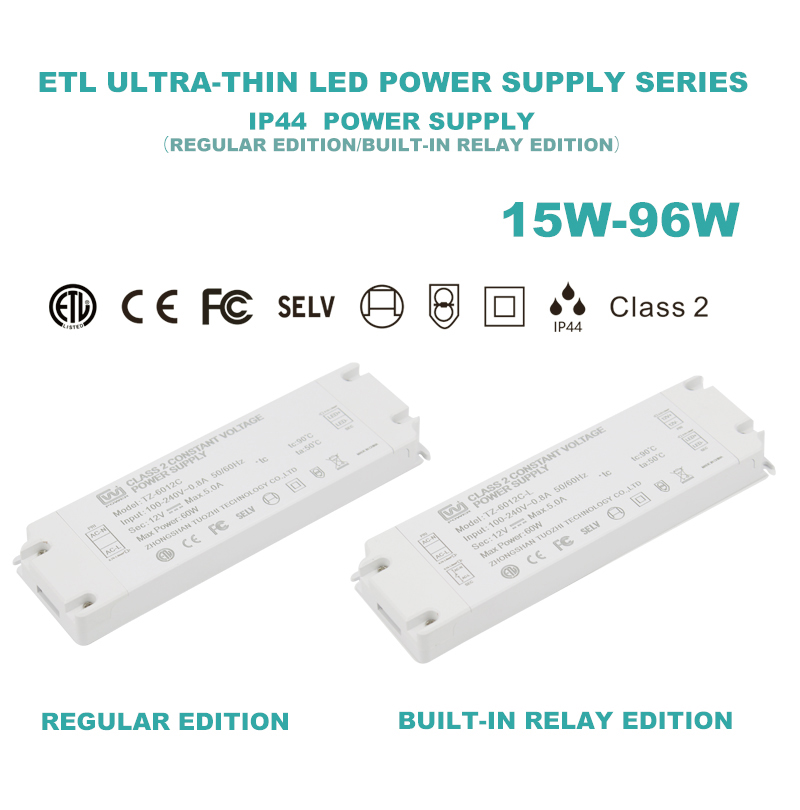

The power supply is specially designed for LED defogger mirror,15W/24W/36W/48W/60W/72W/96W Covers the most commonly used wattage of LED mirrors.we will be built in the relay inside the power supply, no need to use an external relay, more easy wiring, Greatly improve the production efficiency.

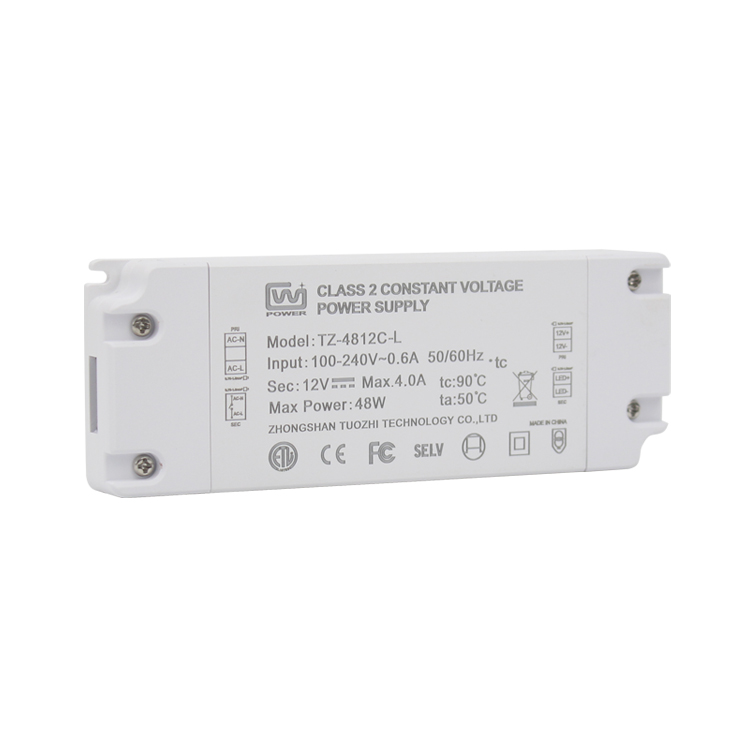

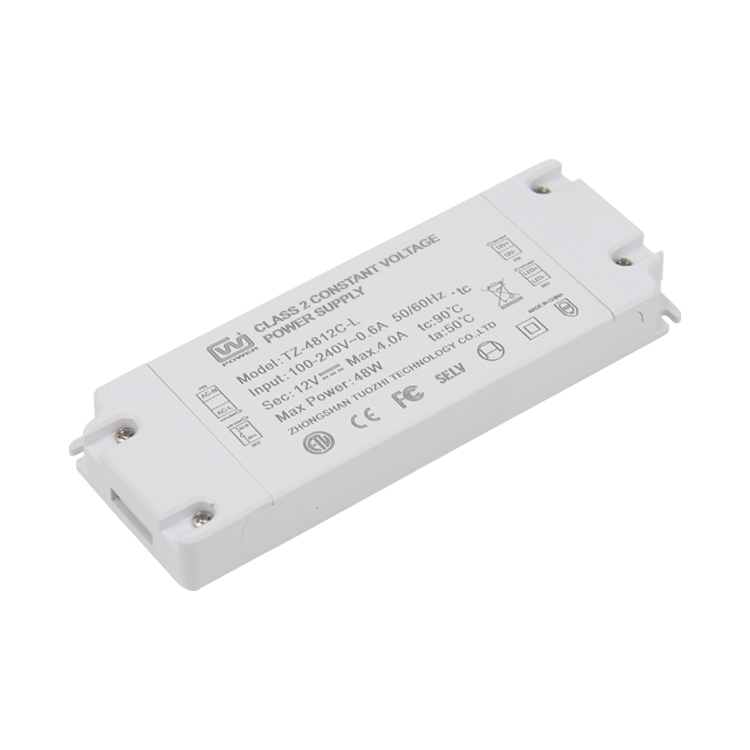

TZ-4812C-L 48W constant voltage Special power supply for Fog removing LED mirror

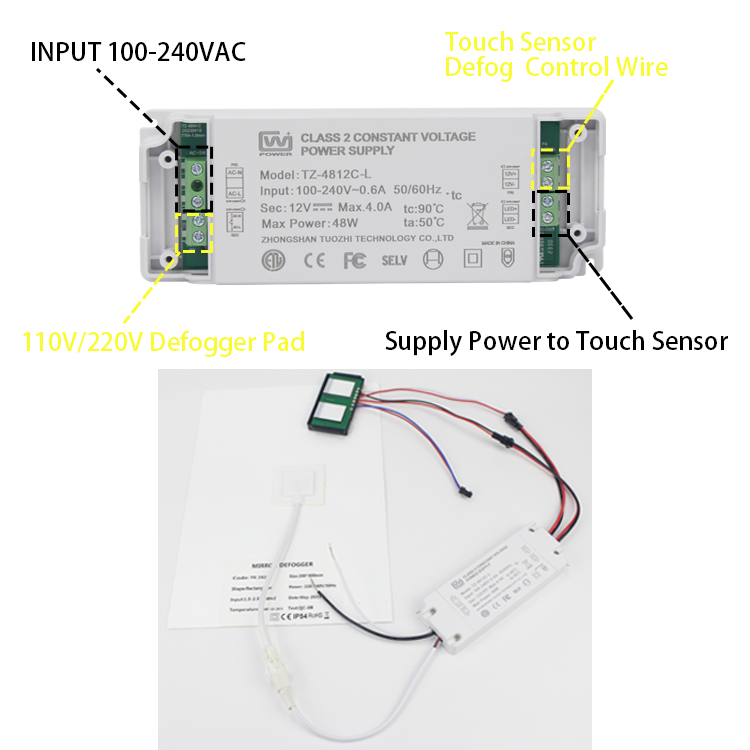

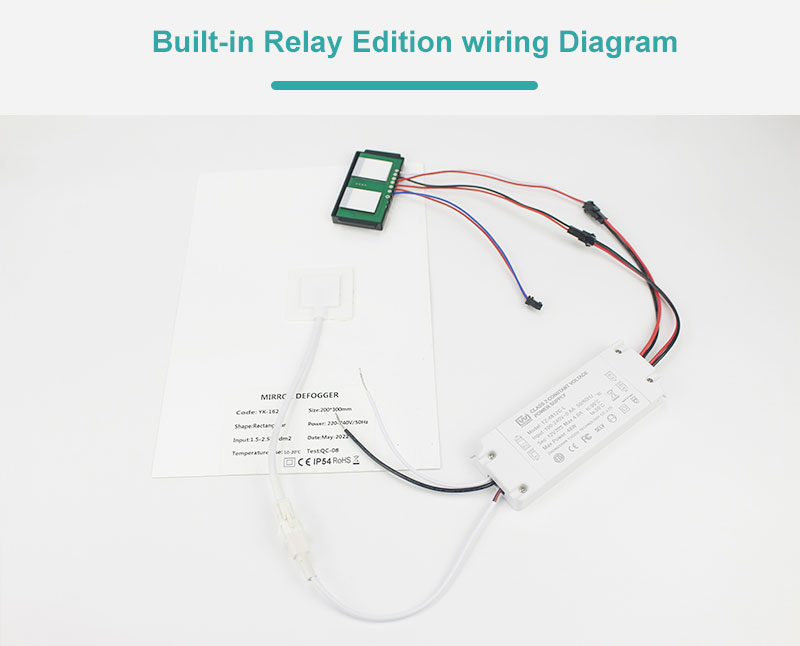

- The power supply is specially designed for LED defogger mirror, we will be built in the relay inside the power supply, no need to use an external relay, easy wiring, improve installation efficiency.
Product Detail
Features
1.Constant Voltage Design.
2.Short Circuit/Over load/Over Temperature protect.
3.Class II protection.
4.Can work in humid environment.
5.Comply with IP44 rate.

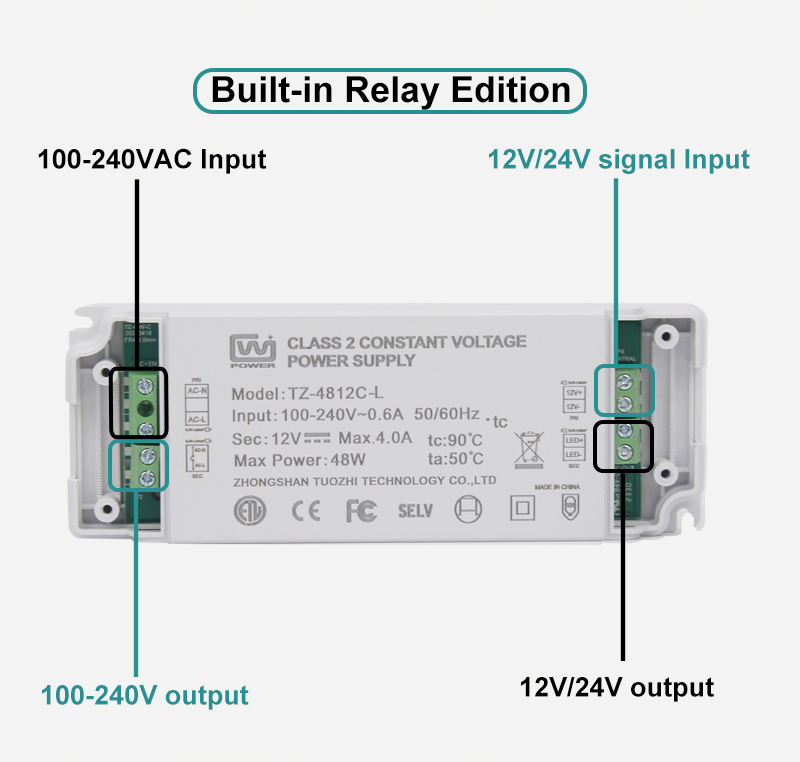

6.Built-in relay design.
Application

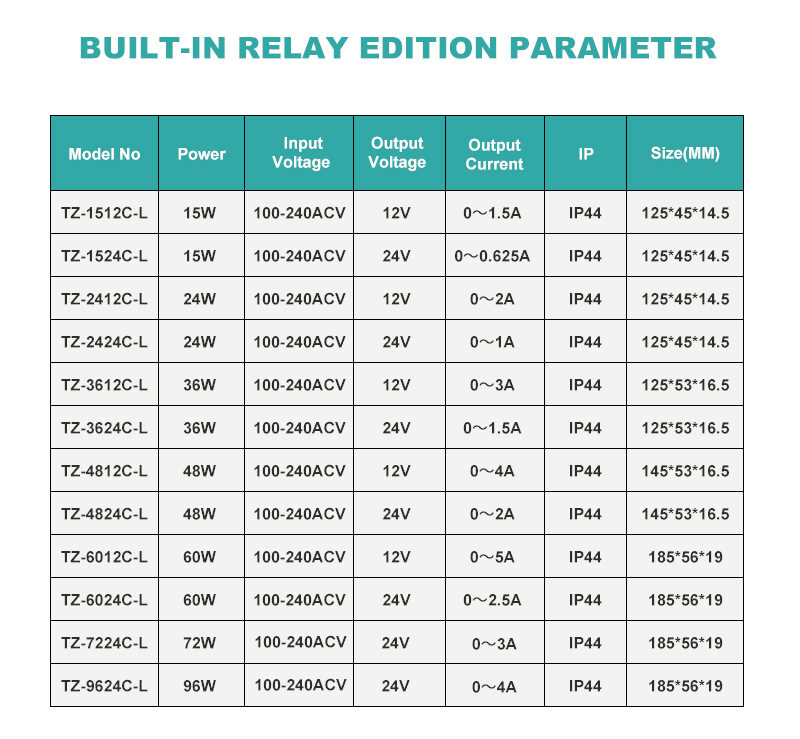

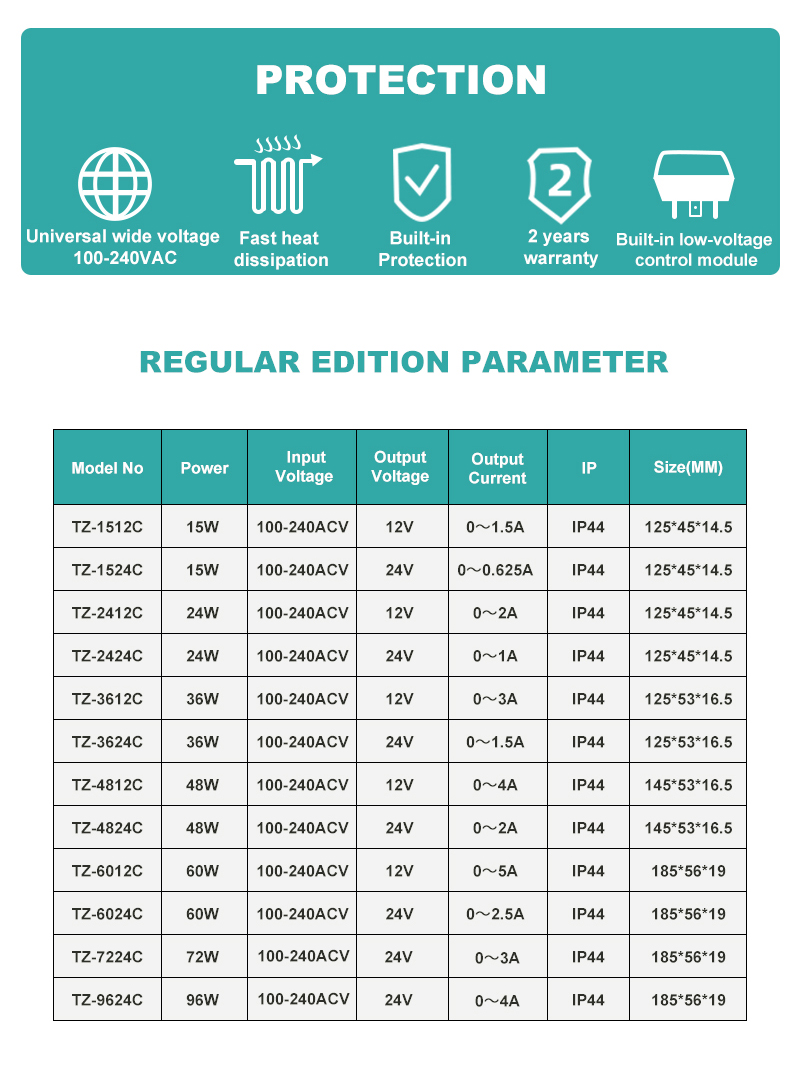

Parameters
Model | TZ-4812C-L | TZ-4824C-L | |
Certificates | ETL | ETL | |
Output
| DC Voltage | 12V | 24V |
Rated Current | 4.0A | 2.0A | |
Rate Power | 48W | ||
ECG Efficiency |
85%±1% | ||
Input | Voltage Range | 100-240VAC | |
Normal input current | 0.25AMax | ||
Frequency Range | 47-63Hz | ||
Protection | No-load Proof | Yes | |
Short Circuit&Overload Protection | Automatic,Reversible | ||
IP Rate | IP44 | ||

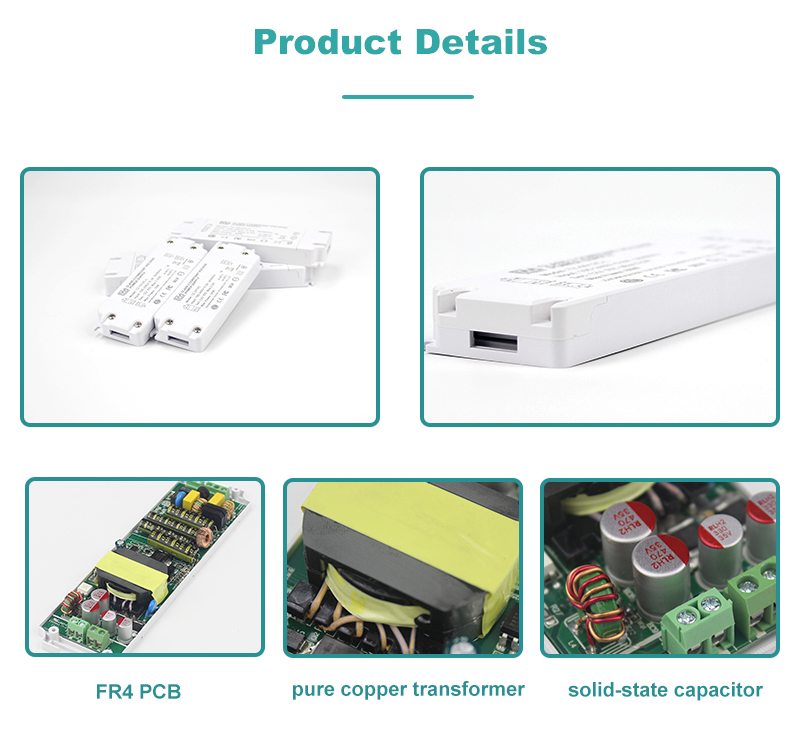

Details
FAQ
1.What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
2.Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website.
3.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
4.What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
5.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union : 30% deposit in advance, 70% balance against the copy of B/L.
