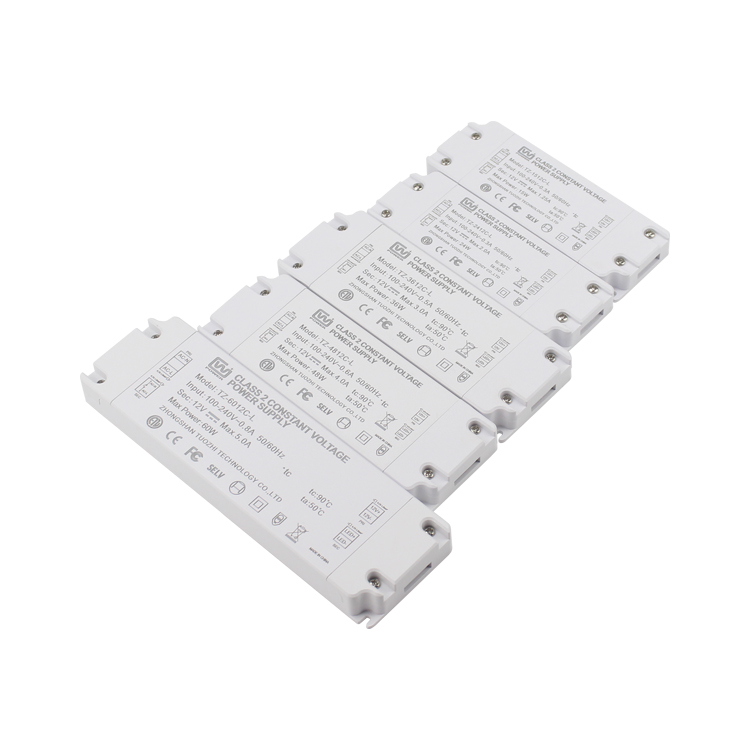

The power supply is specially designed for LED defogger mirror,15W/24W/36W/48W/60W/72W/96W Covers the most commonly used wattage of LED mirrors.we will be built in the relay inside the power supply, no need to use an external relay, more easy wiring, Greatly improve the production efficiency.

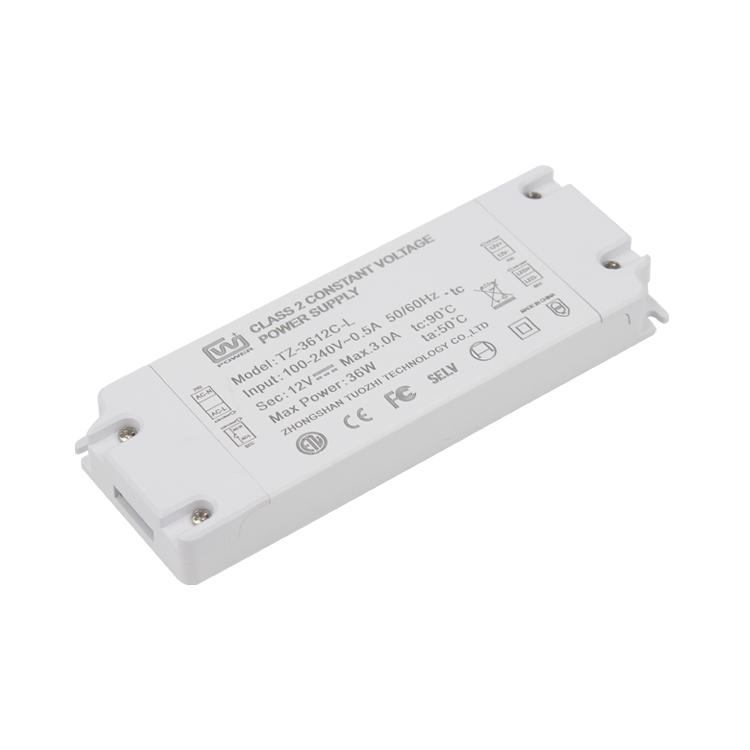

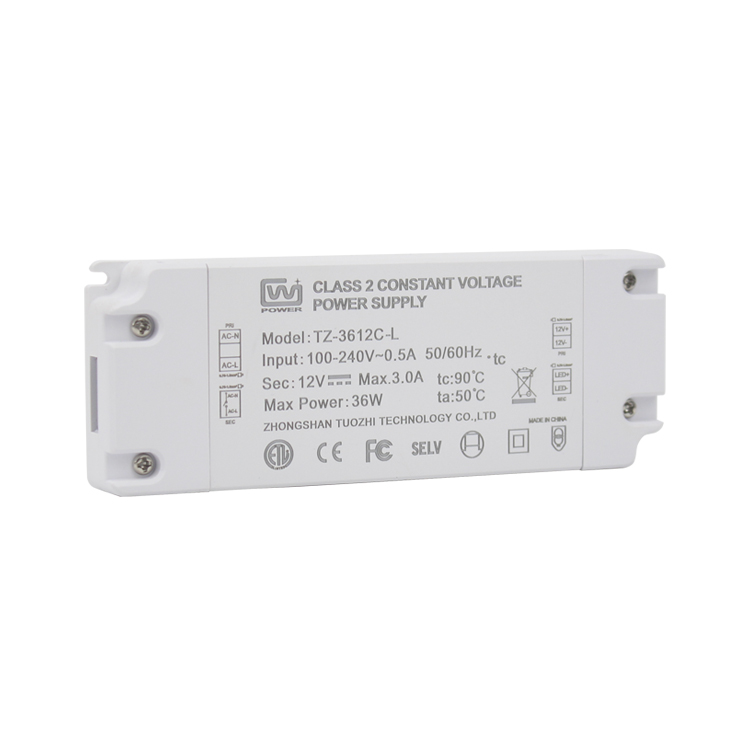

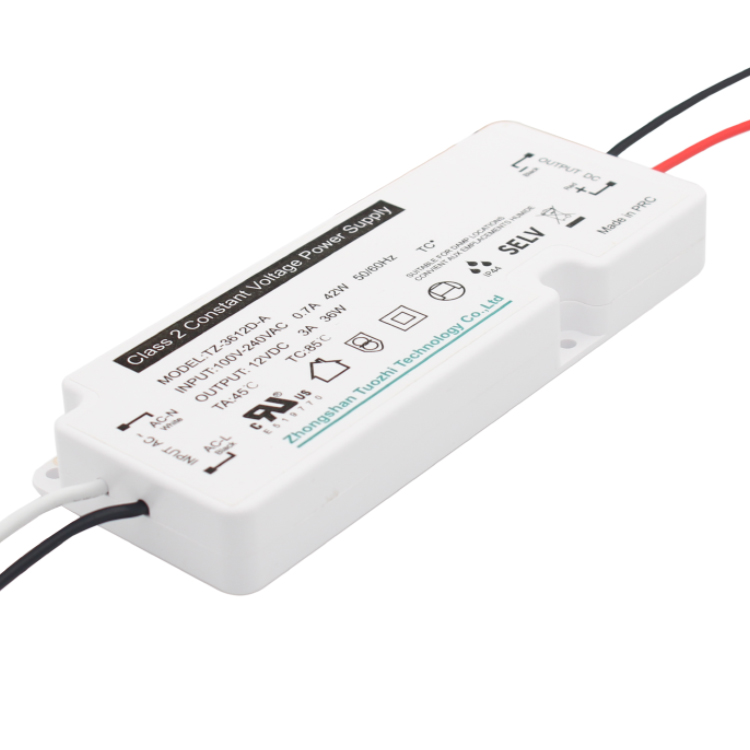

TZ-3612C-L 36W Special LED driver for anti-fog bathroom mirror

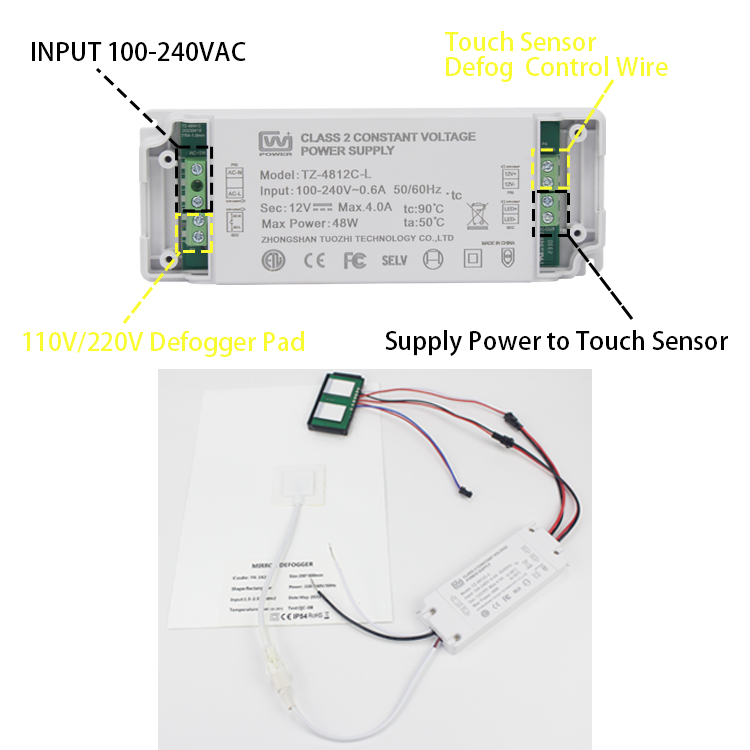

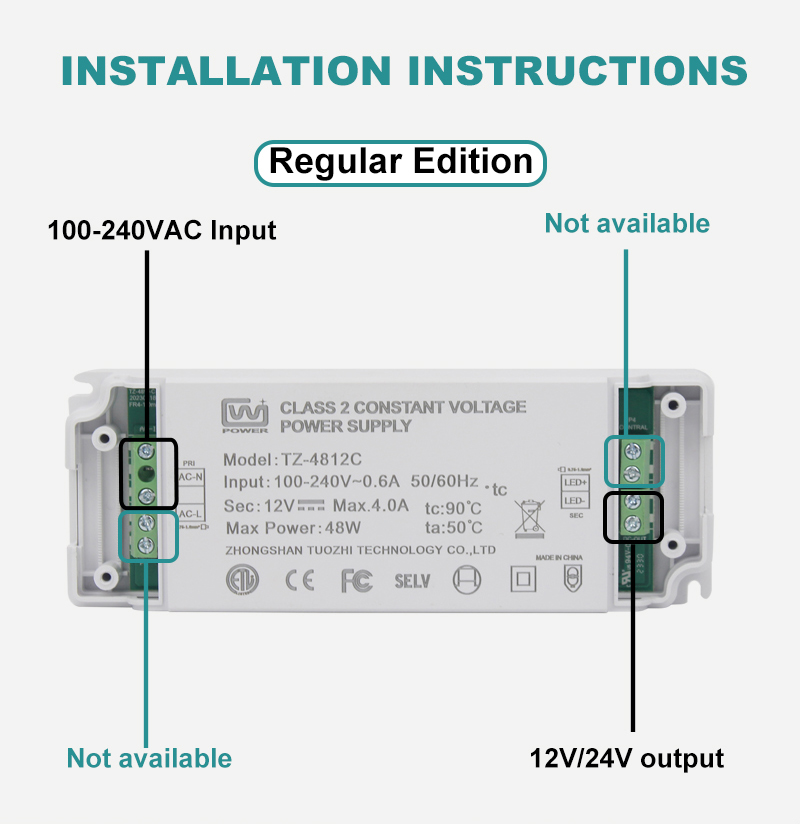

- The power supply is specially designed for LED defogger mirror, we will be built in the relay inside the power supply, no need to use an external relay, easy wiring, improve installation efficiency.
Product Detail
Features
1.Constant Voltage Design.
2.Short Circuit/Over load/Over Temperature protect.
3.Class II protection.
4.Can work in humid environment.
5.Comply with IP44 rate.

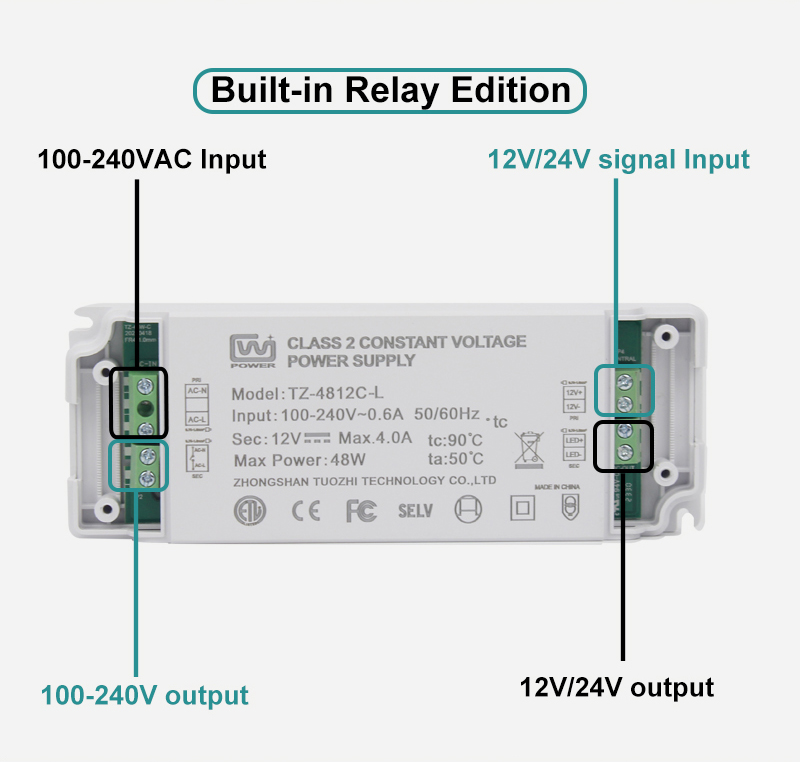

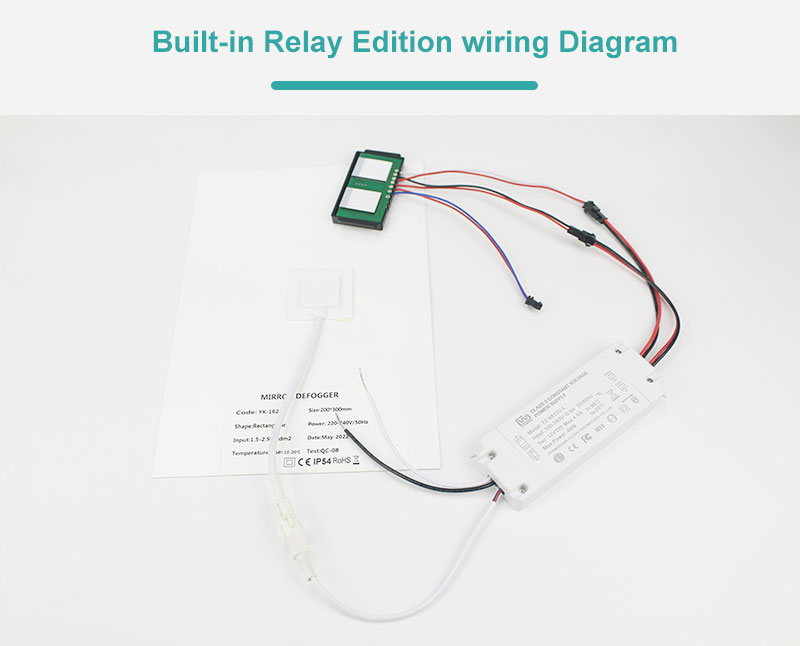

6.Built-in relay design.

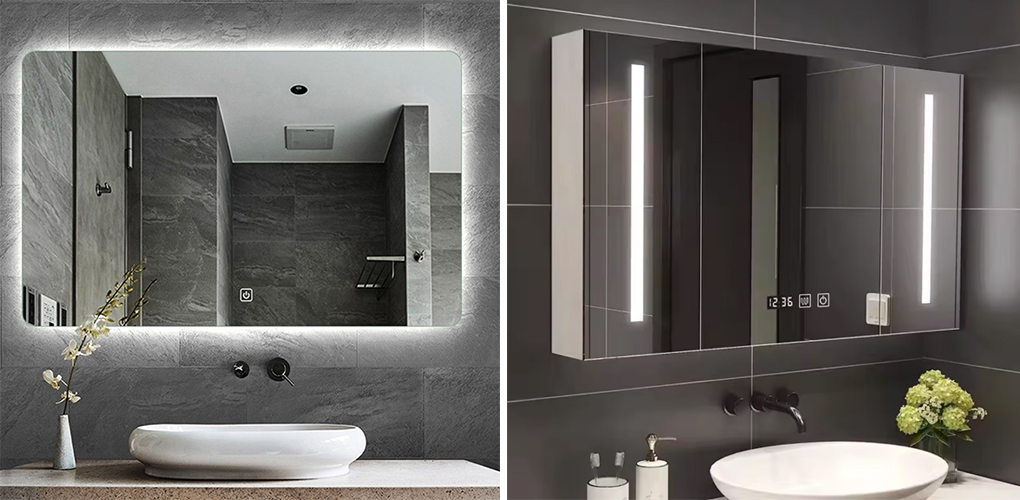

Application

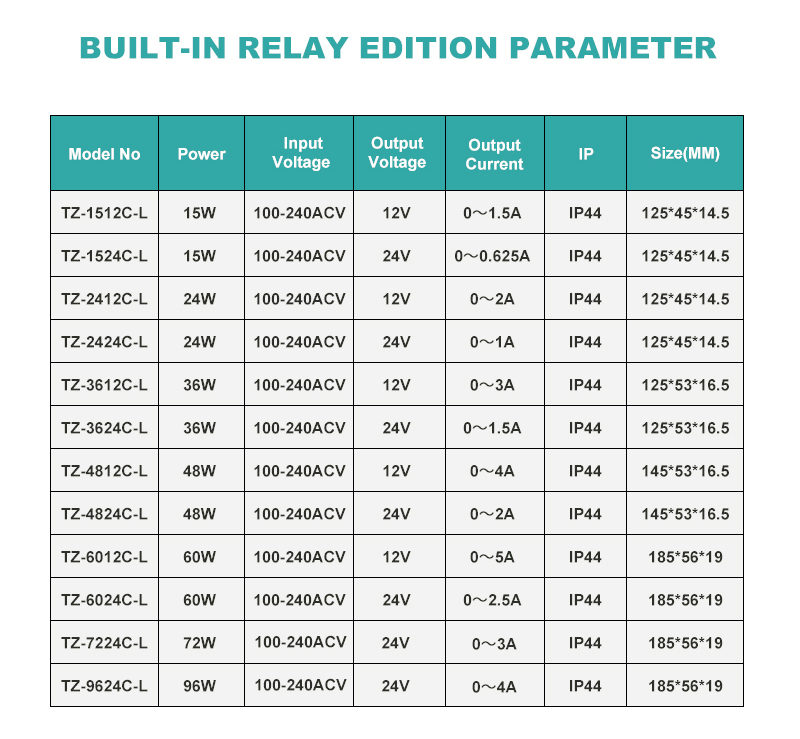

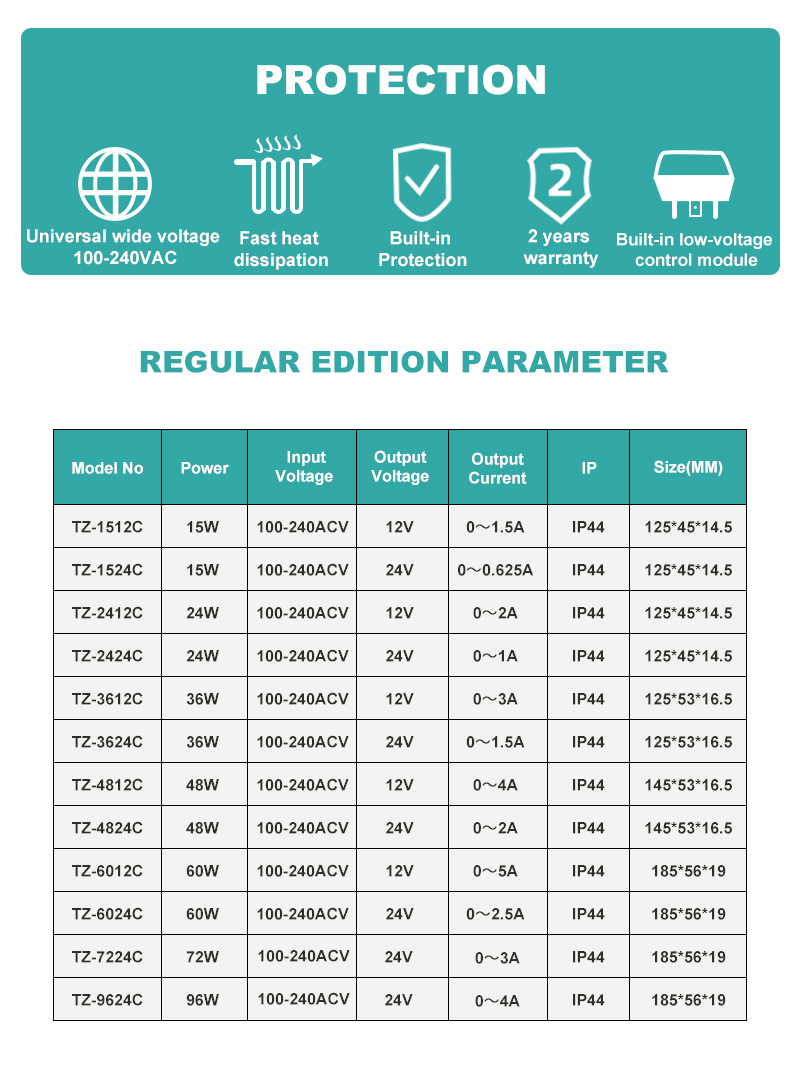

Parameters
Model | TZ-3612C-L | TZ-3624C-L | |
Certificates | ETL | ETL | |
Output
| DC Voltage | 12V | 24V |
Rated Current | 3.0A | 1.5A | |
Rate Power | 36W | ||
ECG Efficiency |
85%±1% | ||
Input | Voltage Range | 100-240VAC | |
Normal input current | 0.25AMax | ||
Frequency Range | 47-63Hz | ||
Protection | No-load Proof | Yes | |
Short Circuit&Overload Protection | Automatic,Reversible | ||
IP Rate | IP44 | ||

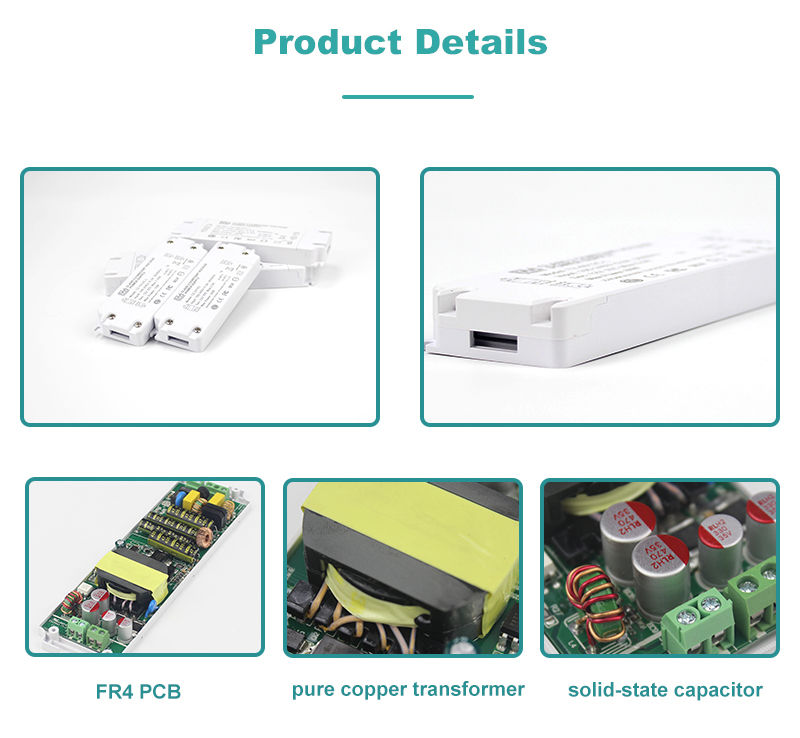

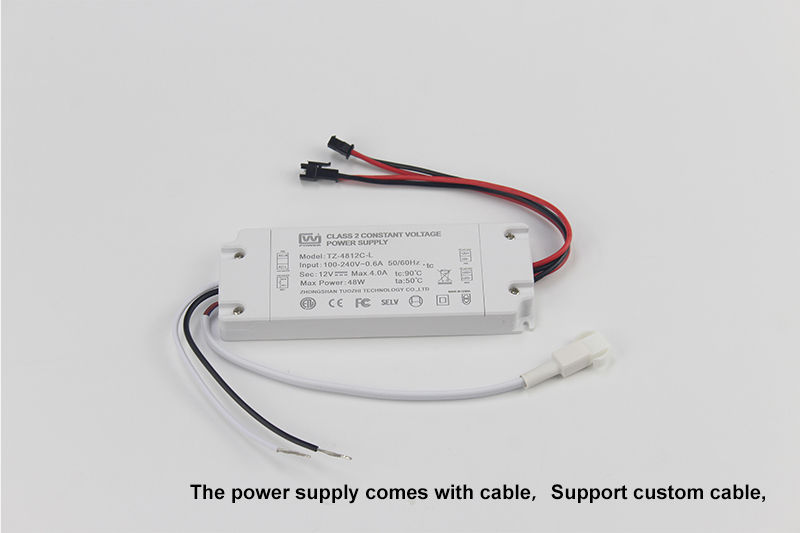

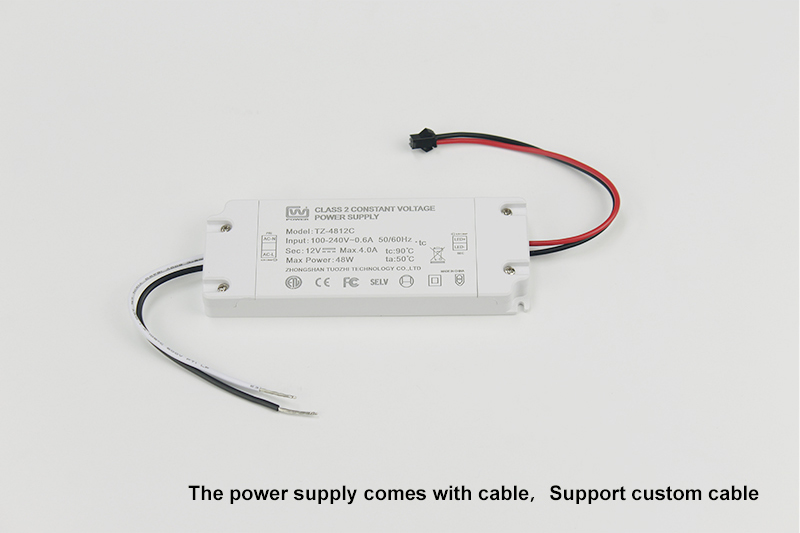

Details
